How to Properly Install Polycarbonate Sheets: A Step-by-Step Guide
When installing polycarbonate sheets, it’s essential to have the right materials and follow proper installation techniques to ensure durability and performance. Here’s a breakdown of the essential items needed for a successful polycarbonate installation and detailed instructions on how to get the job done.
Materials You Need:
- Polycarbonate Sheets: These will form the main structure of your installation.
- Connectors (H or Snap Profile): These connectors link the polycarbonate sheets together and ensure a secure fit.
- U Caps: Used to cap the ends of the polycarbonate sheets for a clean and finished look.
- Vented Tape: Essential for covering the open ends of the sheets to prevent moisture and debris from entering.
- Screws with Neoprene or Plastic Washers: These screws, along with the washers, hold the polycarbonate sheets securely in place while preventing water penetration.
Step-by-Step Installation Process:
-
Prepare the Sheets:
- Before securing the polycarbonate sheets in place, make sure they are the correct size and free from any defects or dirt.
-
Apply Vented Tape:
- For each sheet, apply vented tape to both open ends. This tape helps in preventing moisture buildup inside the sheets, which can lead to fogging or reduced transparency.
-
Add U Caps:
- After the vented tape is applied, place U caps on both ends of each polycarbonate sheet to protect the edges and give a clean, professional finish. For every sheet, you’ll need two U caps – one for each end.
-
Install Connectors:
- Use H profiles or snap profiles to connect multiple polycarbonate sheets. These connectors ensure that the sheets are properly aligned and provide a watertight seal between them.
-

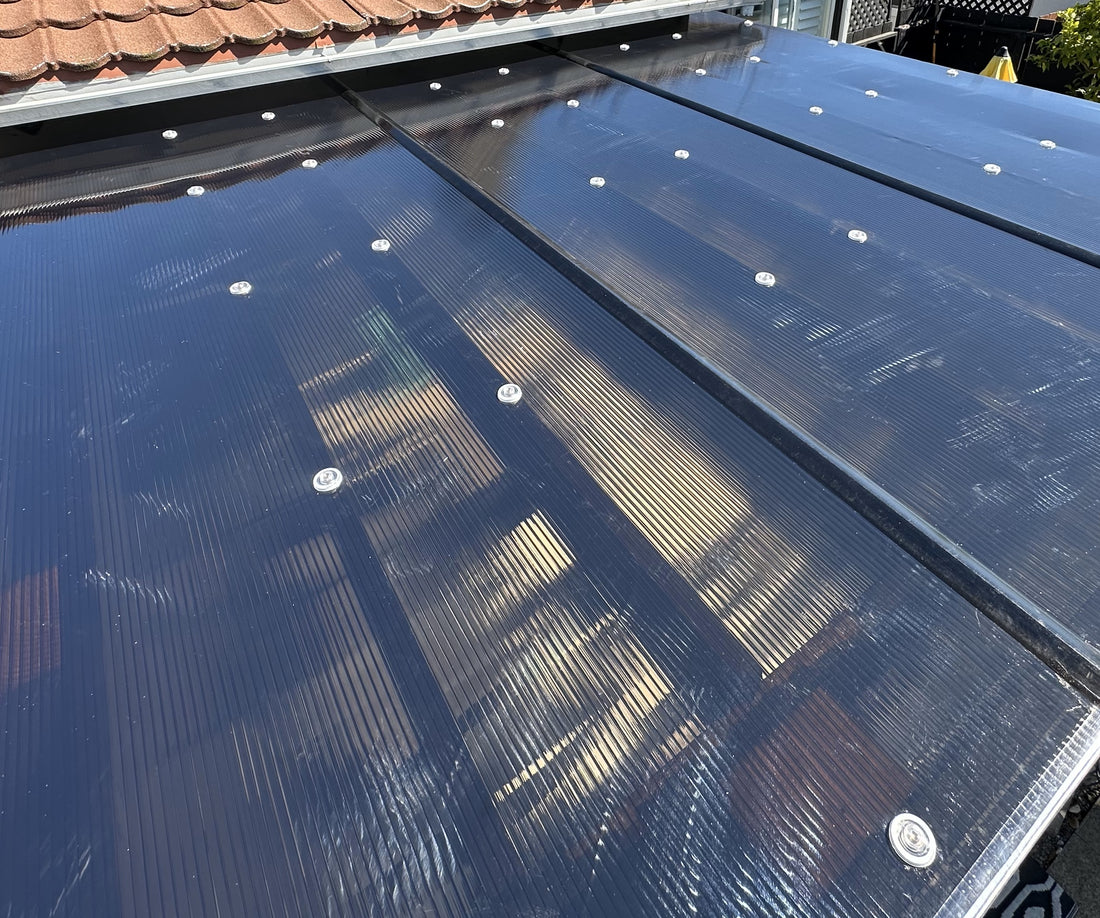

Secure the Sheets with Screws:
- Polycarbonate sheets need to be securely fastened using screws with neoprene or plastic washers to prevent any water from penetrating the screw holes.
- The screws should be installed at regular intervals to ensure proper stability. A good rule of thumb is to install screws every 2 feet along the sheet.
How to Calculate the Number of Screws:
The number of screws required depends on the size and number of sheets. Here’s a guideline for a standard sheet size of 4 ft x 8 ft:
- For one sheet (4 ft x 8 ft), you will need approximately 15 screws.
- For two sheets (4 ft x 8 ft), you will need around 25 screws.
- For three sheets (4 ft x 8 ft), the total number of screws increases to 45 screws.
This pattern continues as you add more sheets, ensuring that each one is properly secured.
Final Tips:
- Always make sure that your screws are tightened securely, but avoid over-tightening as this can crack the polycarbonate sheets.
- Ensure proper alignment and sealing of the sheets to prevent water leaks.
By following these guidelines and using the right materials, your polycarbonate installation will be sturdy, weather-resistant, and long-lasting.
